Description

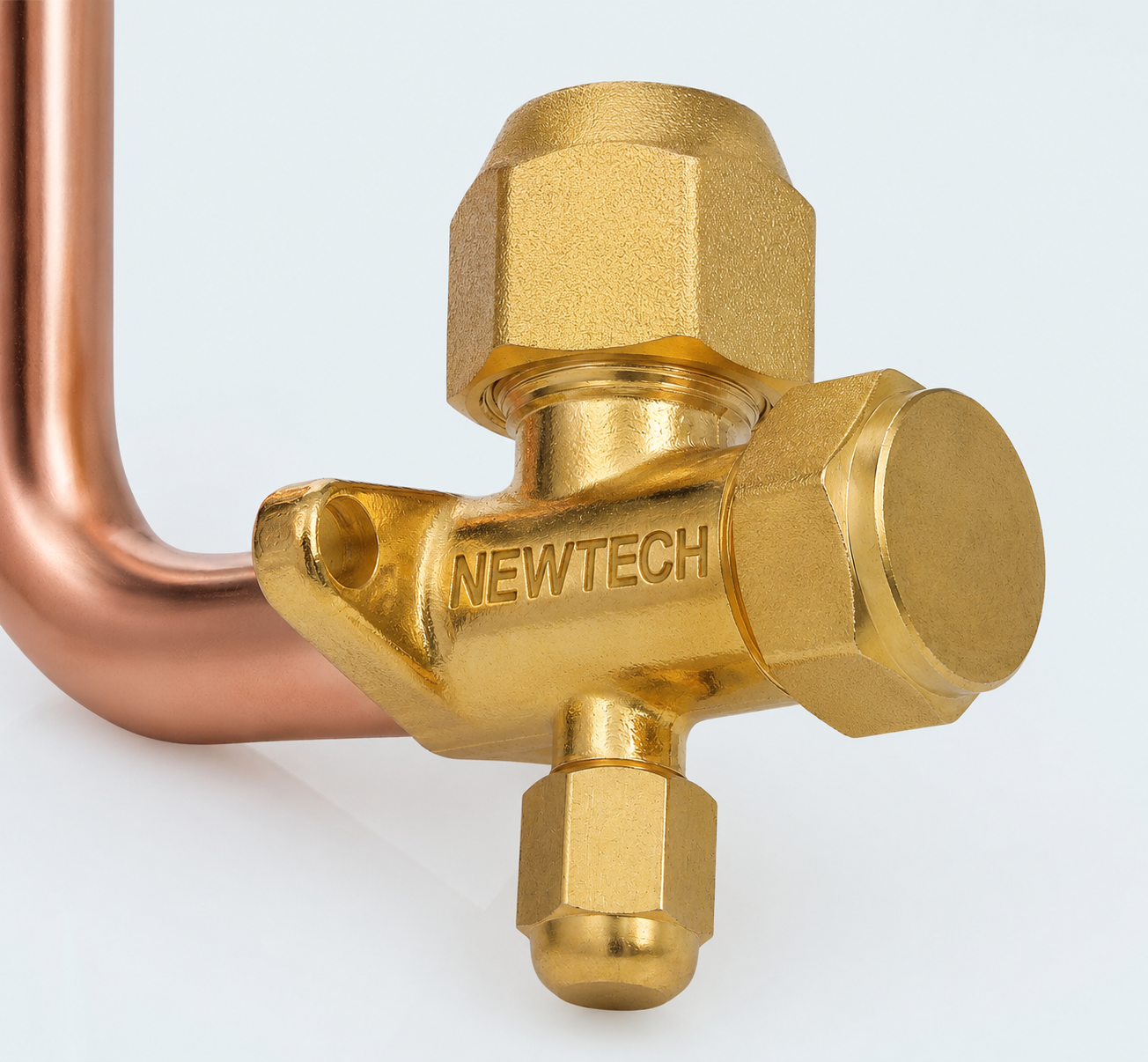

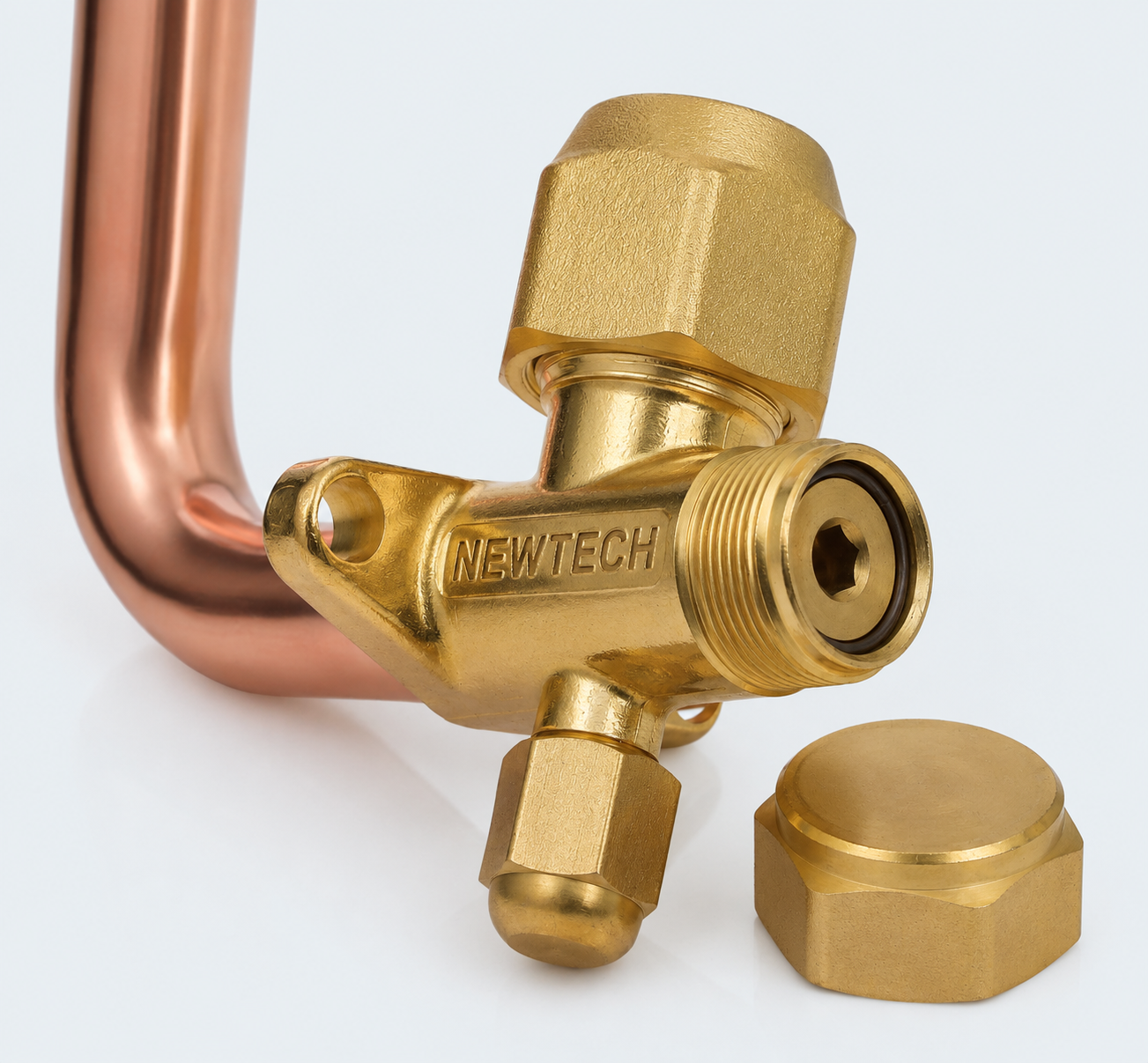

5/8″ Split Valve – L Series (3-Way)
The 5/8″ Split Valve – L Series (3-Way) is a heavy-duty HVAC service valve designed for refrigerant charging, evacuation, pressure testing, and maintenance in high-capacity air conditioning and refrigeration systems. Manufactured from premium forged brass with high-purity copper tubing, it delivers superior sealing performance, exceptional corrosion resistance, and long service life under demanding operating conditions.
Its compact 90° L-shaped copper tube and precision dual-thread configuration provide easy installation in confined spaces while ensuring secure, leak-free connections. Manufactured using advanced CNC machining and induction brazing technology, every valve is engineered to meet international quality standards for professional HVAC applications.
Key Features
- Premium forged brass body
- 98% pure copper tube
- Precision CNC machined threads
- Heavy-duty 3-way service valve
- 90° L-shaped copper tube
- 45° SAE flare connection
- Excellent corrosion resistance
- 100% leak tested before dispatch
- Compatible with modern refrigerants
- OEM & Private Label Manufacturing Available
Applications
- Residential Split Air Conditioners
- Commercial HVAC Systems
- VRF / VRV Systems
- Heat Pumps
- Cold Storage Units
- Commercial Refrigeration
- Industrial Cooling Equipment
- Condensing Units
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 5/8″ Split Valve – L Series (3-Way) |
| Body Material | Premium Forged Brass |
| Tube Material | 98% Pure Copper |
| Manufacturing Process | Precision CNC Machining |
| Brazing Process | Advanced Induction Brazing |
| Charging Connection | 7/16″-20 UNF |
| Flare Connection | 7/8″-14 UNF |
| Tube Gauge | 23 Gauge Copper Tube |
| Copper Tube Angle | 90° Bend |
| Valve Mounting Angle | 45° SAE |
| Working Pressure | Up to 800 PSI |
| Compatible Refrigerants | R22, R32, R410A |
| Approximate Weight | 270 ± 1 g |
| Leak Test | 100% Leak Tested |
| OEM / ODM | Supported |
| Country of Origin | India |
Product Advantages
- Heavy-duty brass construction for maximum durability
- Leak-proof sealing under high-pressure conditions
- Excellent corrosion resistance
- Easy installation and servicing
- Optimized refrigerant flow performance
- Reliable operation in demanding HVAC environments
- Suitable for residential, commercial and industrial systems
Quality Assurance
Each valve undergoes comprehensive quality control procedures including dimensional inspection, CNC thread verification, induction brazing inspection, pressure testing, and leak testing. Every unit is manufactured to deliver dependable performance and long-term reliability.
OEM Manufacturing Services
We provide complete OEM and ODM manufacturing solutions for HVAC equipment manufacturers, distributors, wholesalers, and global brands.
- Custom Thread Configurations
- Custom Copper Tube Design
- Laser Logo Engraving
- Private Label Branding
- Bulk Production
- Export Packaging
Why Choose Our Split Valve?
- ✔ Premium Brass Material
- ✔ Precision CNC Manufacturing
- ✔ High Pressure Performance
- ✔ Leak-Proof Construction
- ✔ Long Service Life
- ✔ Corrosion Resistant Finish
- ✔ OEM Manufacturing Support
- ✔ International Export Quality
- ✔ Fast Production & Delivery
Packaging
- Standard Export Carton Packaging
- Bulk Packaging Available
- OEM Private Label Packaging
- Customized Packaging Solutions
Request a Quote
Looking for premium HVAC brass valves for OEM manufacturing or bulk supply? Contact our sales team for technical assistance, customized solutions, and competitive pricing. We are committed to delivering precision-engineered HVAC components that meet international quality standards.
