Description

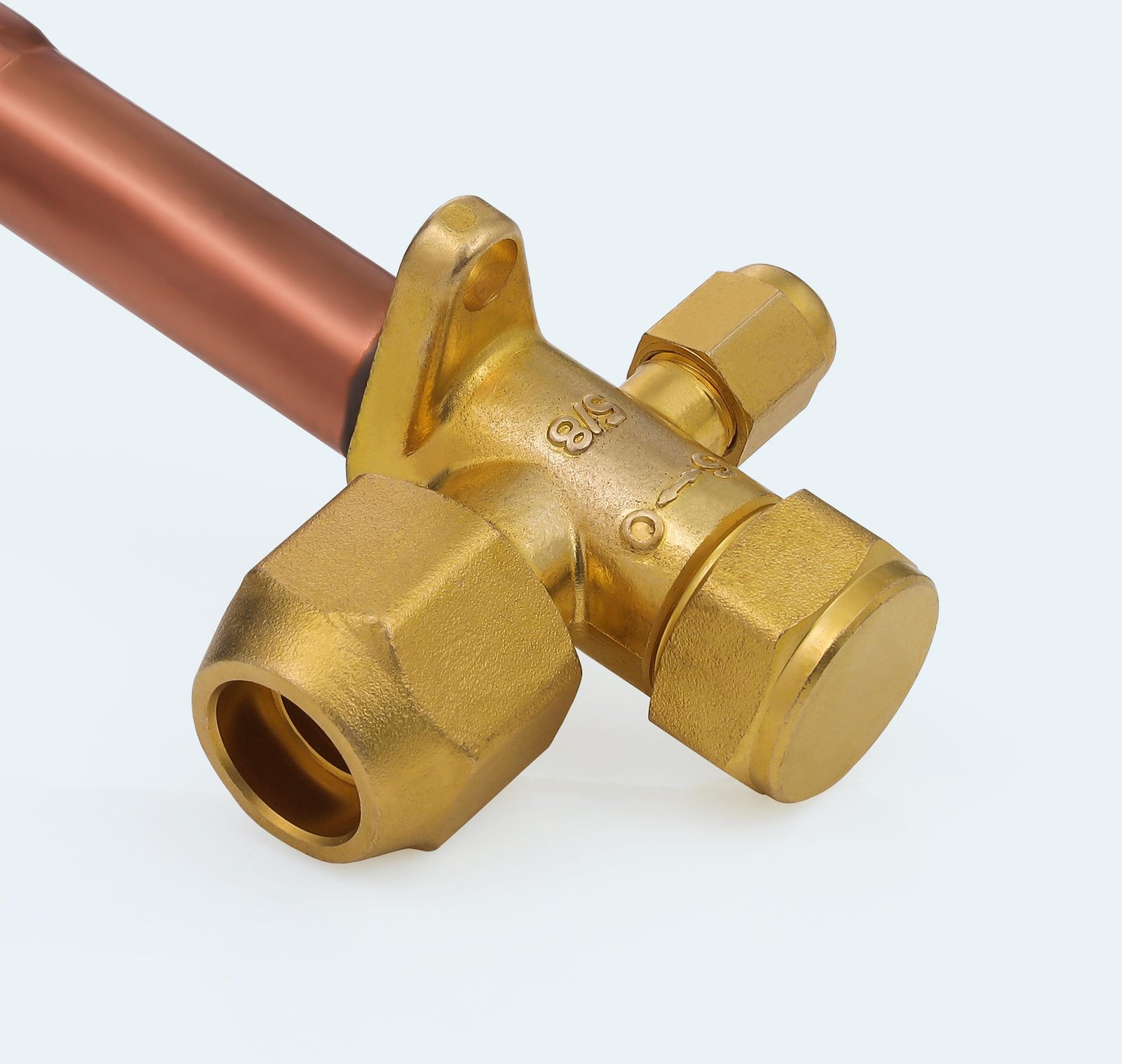

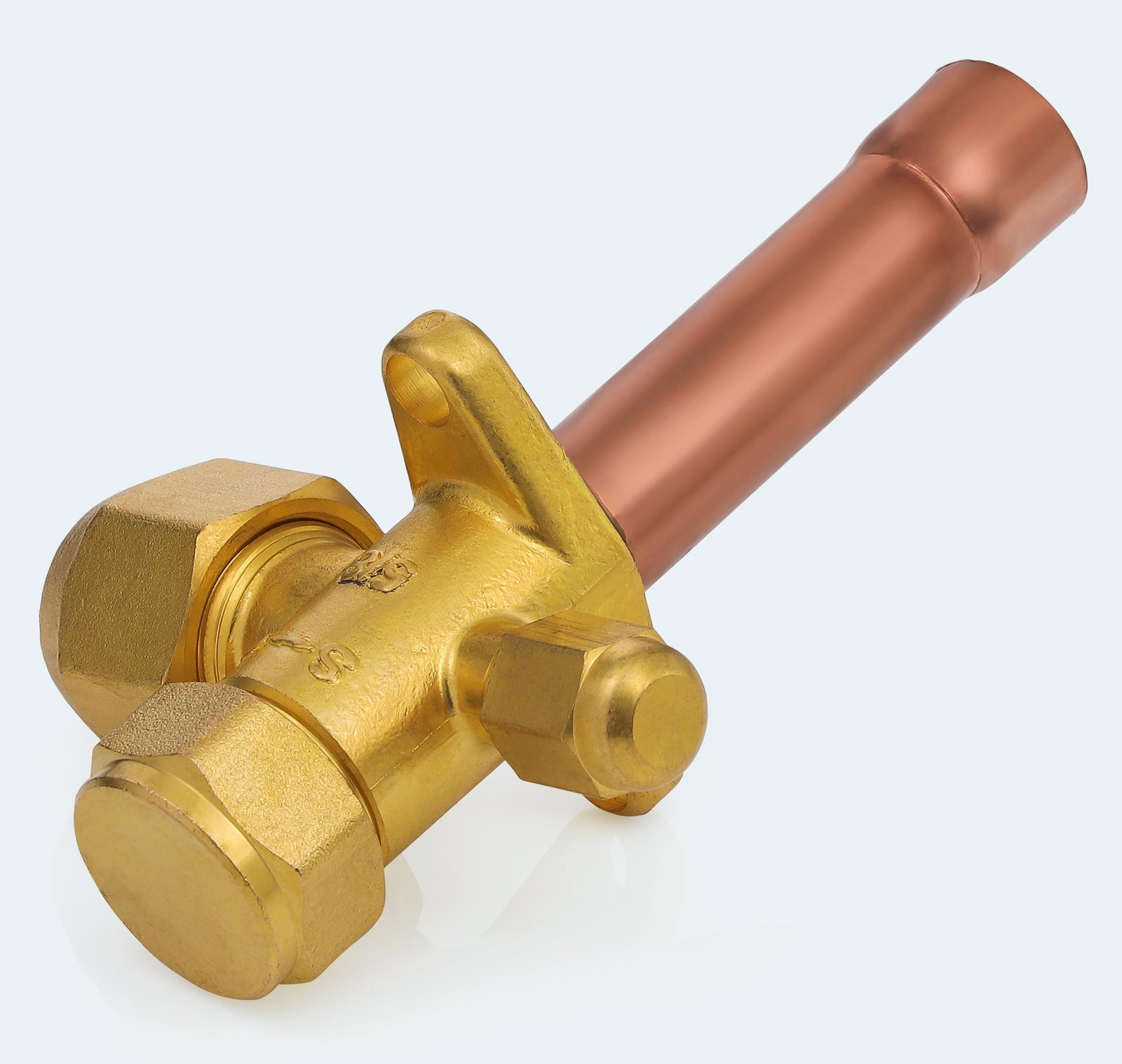

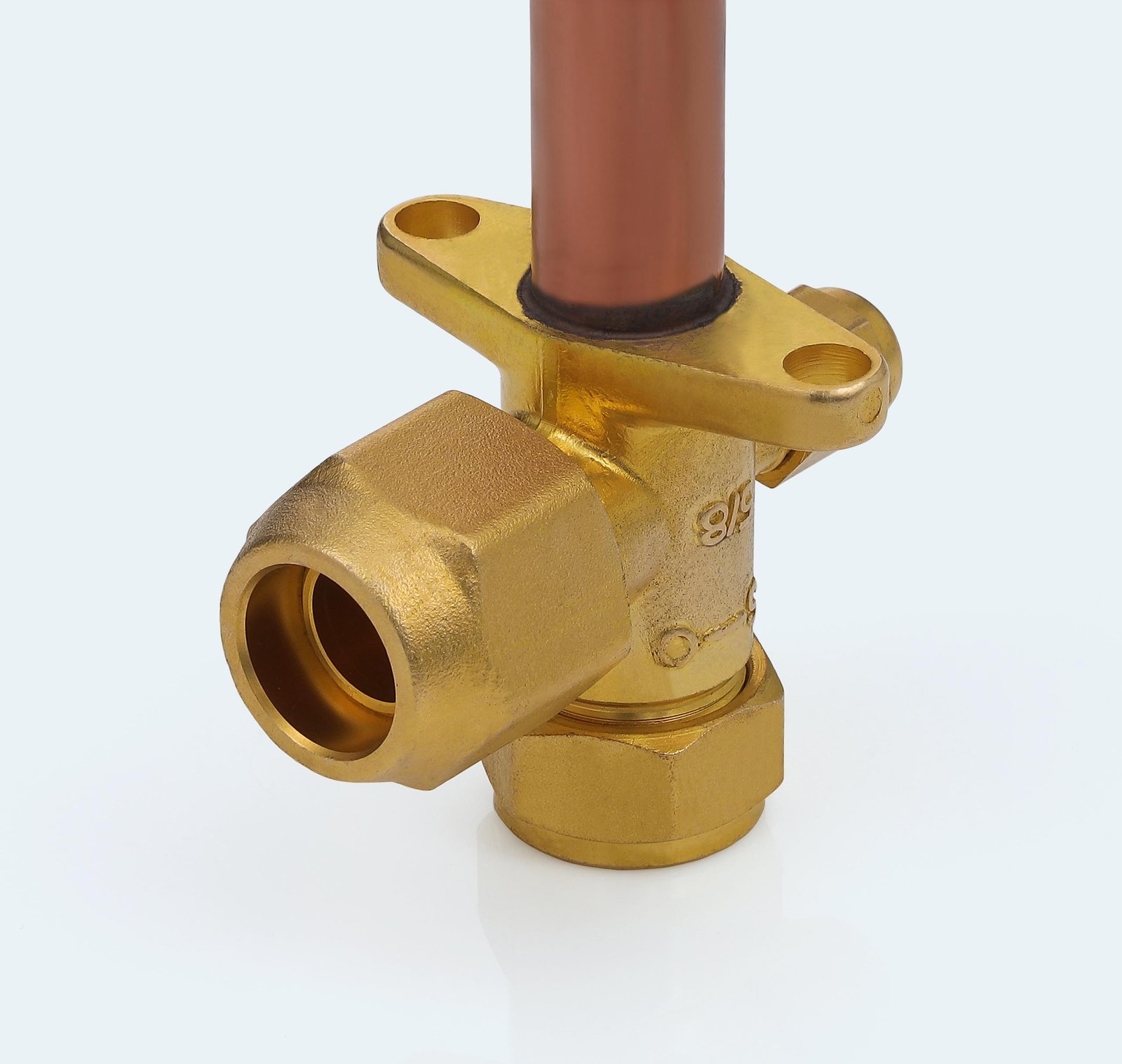

5/8″ Split Valve – S Series (3-Way)
The 5/8″ Split Valve – S Series (3-Way) is a heavy-duty HVAC service valve engineered for refrigerant charging, evacuation, pressure testing, and maintenance of high-capacity air conditioning and refrigeration systems. Manufactured from premium forged brass with a high-purity copper tube, it delivers exceptional sealing performance, superior corrosion resistance, and reliable long-term operation under demanding conditions.
Its Straight (S-Type) configuration provides a direct refrigerant flow path, making installation easier while reducing pressure loss. Precision CNC machining and advanced induction brazing ensure excellent dimensional accuracy, leak-proof performance, and outstanding durability for residential, commercial, and industrial HVAC applications.
Key Features
- Premium forged brass body
- 98% pure copper tube
- Straight (S-Type) 3-Way configuration
- Precision CNC machined threads
- Advanced induction brazed construction
- 45° SAE flare connection
- Excellent corrosion resistance
- Designed for high-pressure HVAC applications
- 100% leak tested before dispatch
- OEM & Private Label Manufacturing Available
Applications
- Residential Split Air Conditioners
- Commercial HVAC Systems
- VRF / VRV Air Conditioning Systems
- Heat Pump Equipment
- Cold Storage Units
- Commercial Refrigeration Systems
- Industrial Cooling Equipment
- HVAC Installation & Service Applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 5/8″ Split Valve – S Series (3-Way) |
| Body Material | Premium Forged Brass |
| Tube Material | 98% Pure Copper |
| Valve Type | Straight (S-Type) 3-Way |
| Manufacturing Process | Precision CNC Machining |
| Brazing Process | Advanced Induction Brazing |
| Charging Connection | 7/16″-20 UNF |
| Flare Connection | 7/8″-14 UNF |
| Tube Gauge | 23 Gauge Copper Tube |
| Fitting Angle | 45° SAE |
| Working Pressure | Up to 800 PSI |
| Compatible Refrigerants | R22, R32, R410A |
| Approximate Weight | 239 ± 1 g |
| Leak Test | 100% Leak Tested |
| OEM / ODM | Available |
| Country of Origin | India |
Product Advantages
- Heavy-duty forged brass construction
- Straight refrigerant flow design for efficient installation
- Excellent sealing performance under high pressure
- Corrosion and wear resistant
- Long operational service life
- Suitable for modern refrigerant systems
- Reliable performance in demanding HVAC environments
Quality Assurance
Every Split Valve undergoes strict quality inspections including dimensional verification, thread accuracy checks, induction brazing inspection, pressure testing, and leak testing. Each unit is manufactured to deliver dependable performance, precision, and long service life.
OEM Manufacturing Services
We provide comprehensive OEM and ODM manufacturing solutions for HVAC brands, distributors, wholesalers, and equipment manufacturers worldwide.
- Custom Thread Configurations
- Custom Copper Tube Designs
- Laser Logo Engraving
- Private Label Branding
- Bulk Production
- Export Packaging
Why Choose Our Split Valve?
- ✔ Premium Brass Raw Material
- ✔ Precision CNC Manufacturing
- ✔ Leak-Proof Construction
- ✔ Corrosion Resistant Finish
- ✔ High Pressure Performance
- ✔ Long Service Life
- ✔ OEM Manufacturing Support
- ✔ International Export Quality
- ✔ Fast Production & Delivery
Packaging
- Standard Export Carton Packaging
- Bulk Packaging Available
- OEM Private Label Packaging
- Customized Packaging Solutions
Request a Quote
Looking for high-quality HVAC Split Valves for OEM production or bulk supply? Contact our sales team for technical assistance, competitive pricing, and customized manufacturing solutions. We deliver precision-engineered HVAC components designed to meet international quality standards.
